|The Safari SS100-HF snorkel is tough, stylish and has been designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of the Rodeo/ Campo.
Safari took the decision to develop a snorkel system that exceeded the air flow requirements of the tough 2.8L-I4 Diesel engine and this was achieved through engineering and exhaustive testing of the SS100-HF snorkel.
Close attention to the internal cross sectional profile and area, air velocity and flow path through each and every point along the entire length of the snorkel system ensures that the greatest air flow is achieved. The result is maximum engine performance and the best possible fuel economy. This of course also applies to components that are not visible.
For example in order to achieve the optimum air flow within the engine bay area of the Rodeo/ Campo, two special ducts were engineered to deliver a huge shot of fresh air directly into the air cleaner assembly. This tough duct configuration closely couples the snorkel body to the standard air intake assembly and takes advantage of the tight spaces that would preclude the use of traditional hoses - but with the advantage that the internal cross sectional profile of this duct can be altered whilst maintaining the desired cross sectional area at each and every point along its length.
In other words, maximum engine performance and the best possible fuel economy, but also the best structural integrity for a lifetime of hassle-free motoring over and through the world's toughest terrain. A bonus is that the use of these special ducts deliver the maximum convenience for those who wish to install additional under-hood accessories
The Safari Snorkel body and inner ducts are manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the snorkel breezes through the toughest off-road conditions on the planet.

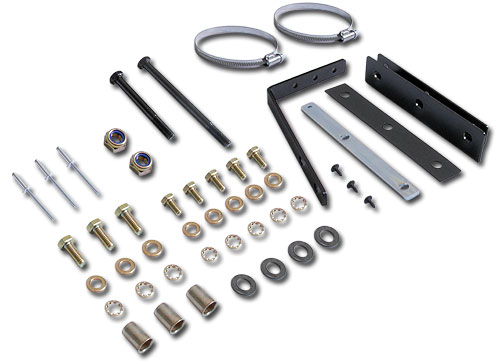

The Safari Snorkel system is supplied as a complete and comprehensive system that includes every nut, bolt and bracket required for installation - right from robust zero-corrosion stainless steel studs, self-locking nyloc nuts through to the tough large diameter anodized body washers .
An accurately marked template is also provided to ensure that the installation of the snorkel body to panel work is as precise as possible and to eliminate any guess work where holes need to be drilled.
Breathe Easy - The genuine Safari Snorkel is positively sealed and delivers a continuous and cooler supply of air for the best engine protection on the planet.
